Switch | T7 & Transit Custom

£1,840.00 GBP

3 reviews
Wheel base
Type
Installation | Delivery
Request A Call
Current lead time: 21 days
Free Shipping
Free Installation
2 Year Warranty

No cutting. No drilling. Now for the T7.

Switch fits the VW Transporter T7 and the Ford Transit Custom from 2023, using the van's own mounting points. It goes in without a hole drilled and comes out in twenty minutes.

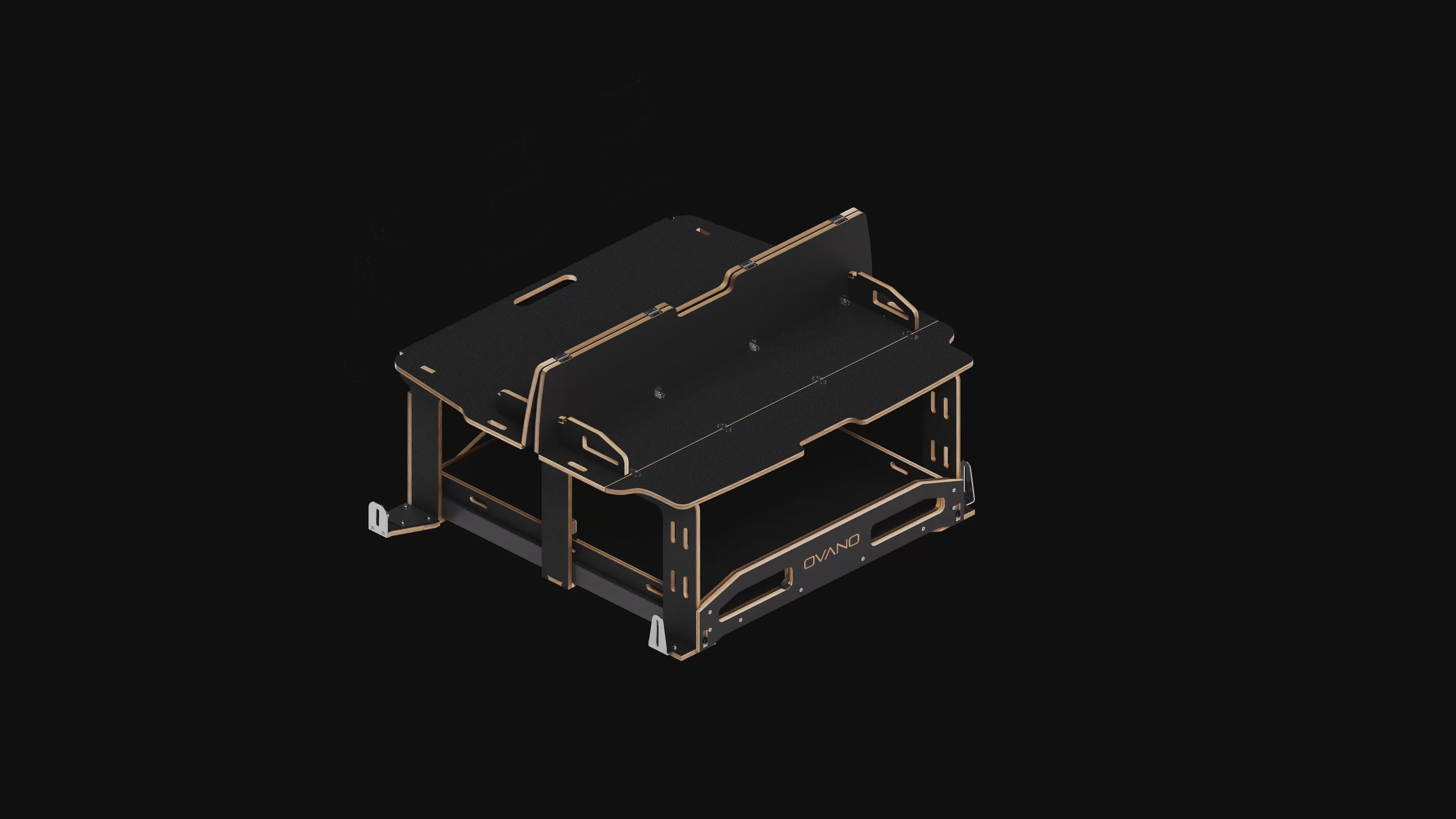

Drawer, bulkhead and full-width sleeping platform in one unit: 18mm black phenolic birch ply, A4 stainless hardware, runners rated to 180kg. Secure tool storage during the week, a bed at the weekend.

Supplied as standard with our OneTouch drawer system, so the drawer opens with one hand when the other one is full.

It comes out when you sell the van. No holes to fill, no bodywork to make good. The system moves to the next van, or comes off the price of this one.

Made to order in our workshop in Clevedon, and backed by a 2-year Ovano warranty.

Goes with it

If you need load capacity rather than a bed, look at the Crew Cab Storage System. The rest of the range is in T7 & Transit Custom.

Compatibility

The Ovano Switch is engineered for maximum compatibility and fits the vehicle configurations listed below.


Compatible Vehicles

  • VW Transporter T7 – Panel Van or Kombi (works with or without rear seats)
  • Ford Transit Custom 2023 onwards – Panel Van and Crew Cab
    Note: Rear bulkhead must be removed on Crew Cab models

    Door Configurations
  • Tailgate
  • Barn doors

Still unsure? Don’t guess. Drop us a message or send a photo of your interior setup and our team will confirm fitment for you.
Installation

Expert installation at our Clevedon HQ (near Bristol)

Installation is carried out by our experienced team ensuring a secure, rattle-free fit.

  • Fast: 1-hour fitment
  • Safe: Installed by Ovano technicians
  • Easy booking: Select “Installation” at checkout and choose your date
  • Free: We don’t charge for installation
Details & Dimensions

Construction & Materials

  • Primary material: 18mm black hexa-grip phenolic-coated A-grade birch plywood
  • All cut edges chamfered and sealed (double-coated in high-traffic areas)
  • Surface-mounted flush hinges: A4 stainless steel (marine grade)
  • Drawer runners: 180kg heavy-duty locking runners, galvanised steel
  • Bulkhead restraint: Dyneema-cored braided line (stronger than steel)
  • Threaded inserts used throughout — no wood screws

Dimensions

SWB (Short Wheelbase)

  • Drawer: 1200mm (L) × 1085mm (W) × 495mm (H)
  • Bed length: 1900mm
  • Bed width: 1475mm
  • Platform height: 580mm

LWB (Long Wheelbase)

  • Drawer: 1500mm (L) × 1085mm (W) × 495mm (H)
  • Bed length: 2300mm
  • Bed width: 1475mm
  • Platform height: 580mm

Warranty

  • Covered by a 2-year Ovano warranty
Care & Maintenance

Cleaning surfaces

Wipe usable surfaces and metal components with Green Oil or a similar light lubricating spray. Avoid harsh or abrasive cleaning chemicals.

Drawer runners

Use compressed air to remove debris from around the ball bearings, then reapply Green Oil liberally to maintain smooth operation.

See our care and maintenance video for full instructions.
Shipping & Returns

Shipping

  • Fully assembled and delivered on a pallet
  • Mainland UK delivery, with additional charges for the Scottish Highlands, the Islands and Northern Ireland
  • We call you within one working day of your order to arrange a delivery date

Full details are in our delivery policy.

Returns

  • Returns accepted within 14 days of delivery
  • Items must be unused and in original condition
  • Return shipping is the customer's responsibility unless the item is faulty or incorrect

Full details are in our returns policy.

Questions about fitment or delivery? get in touch.
