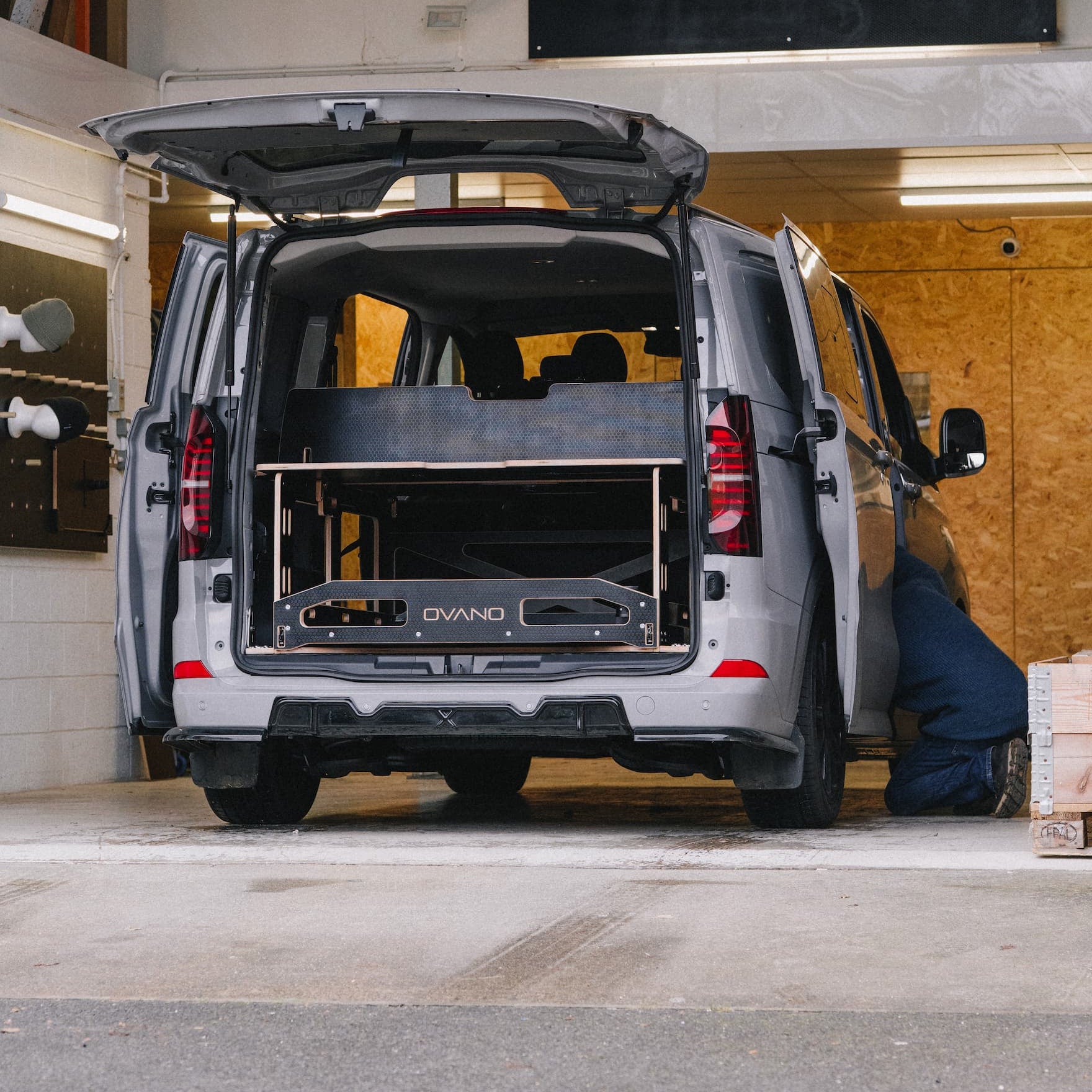

Ovano Switch in new grey T7 kombi with twin sliding doors.

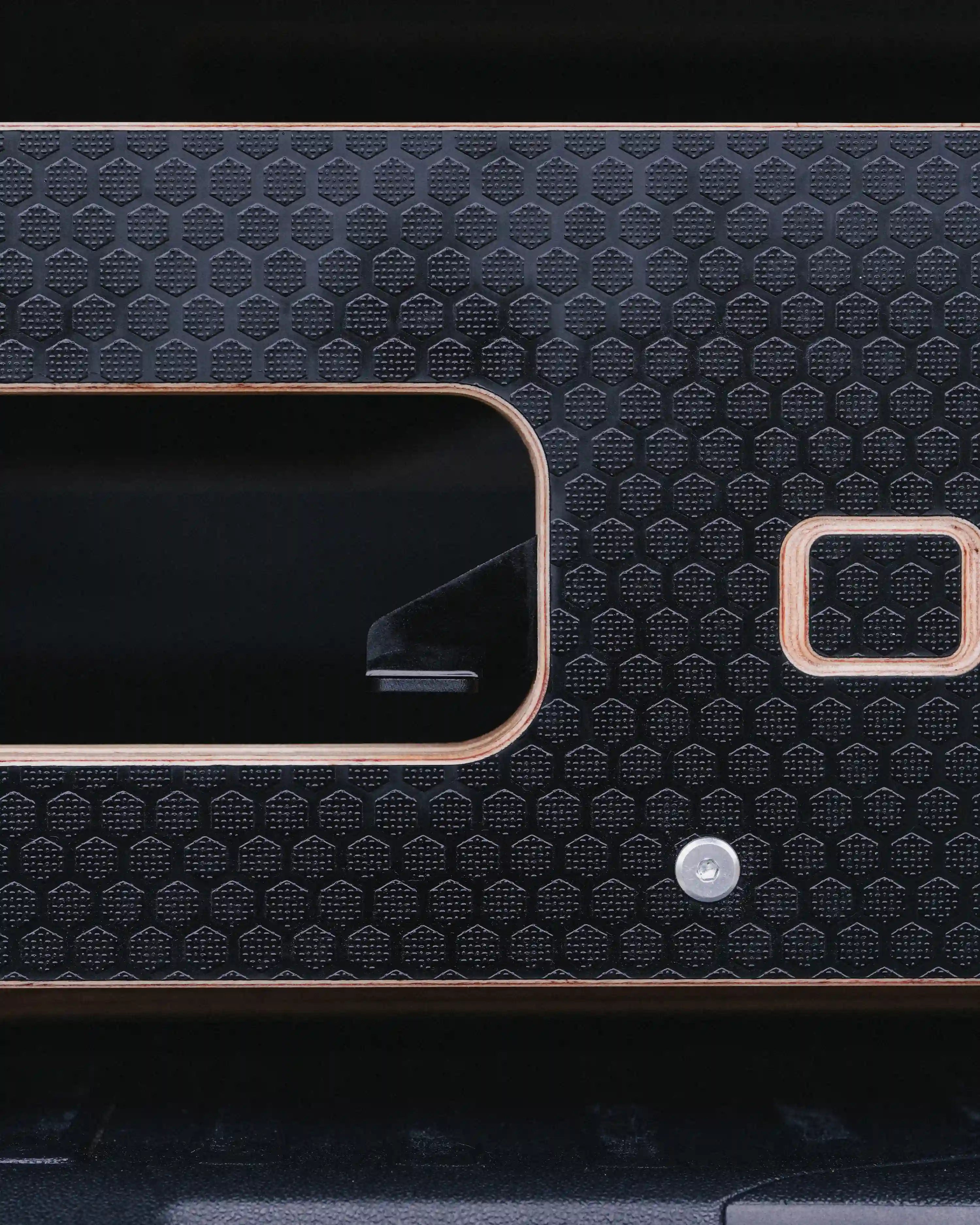

close-up of one touch mechanism on a black Ovano drawer front

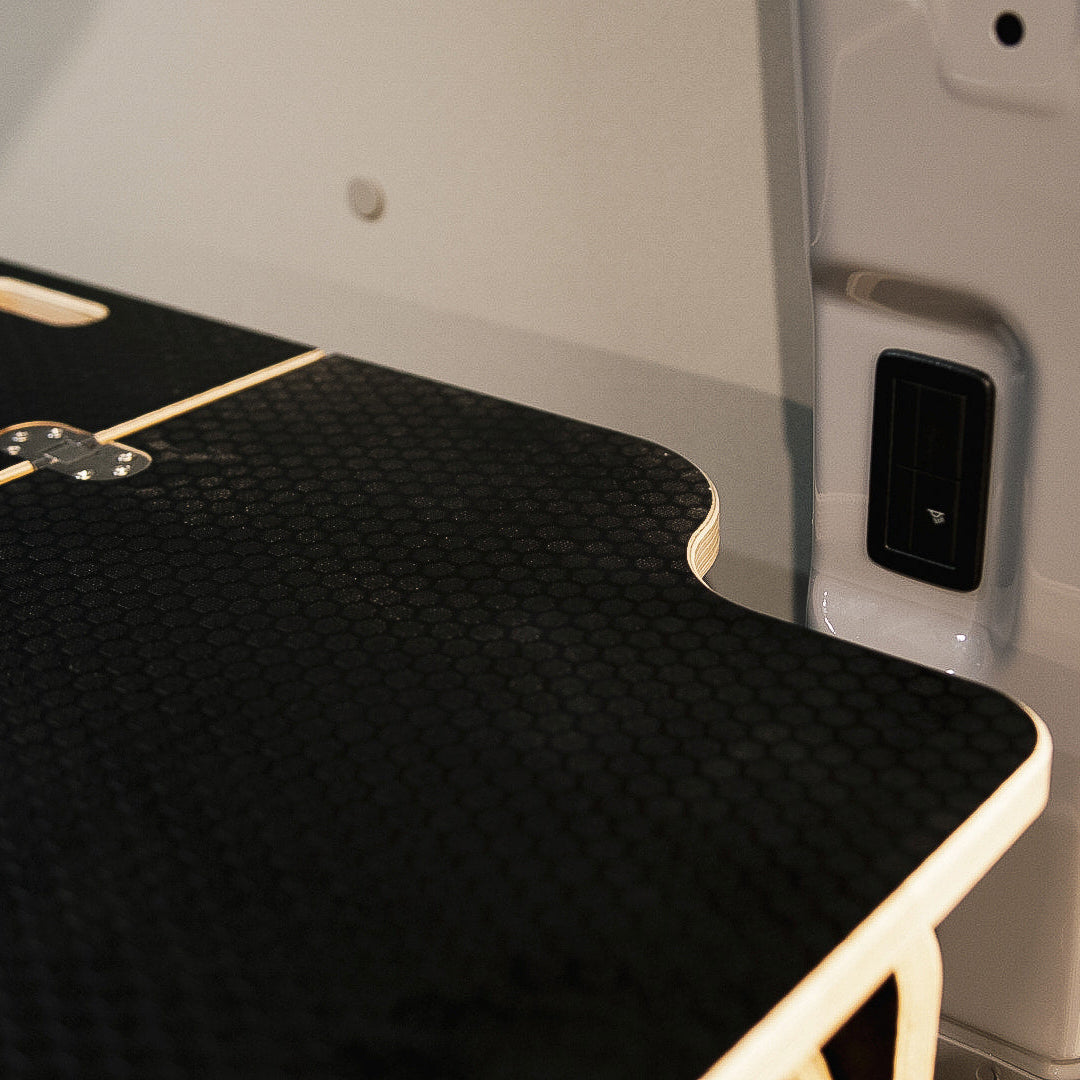

Ovano switch fitted in Transit Custom. Close-up of rear flap detail.

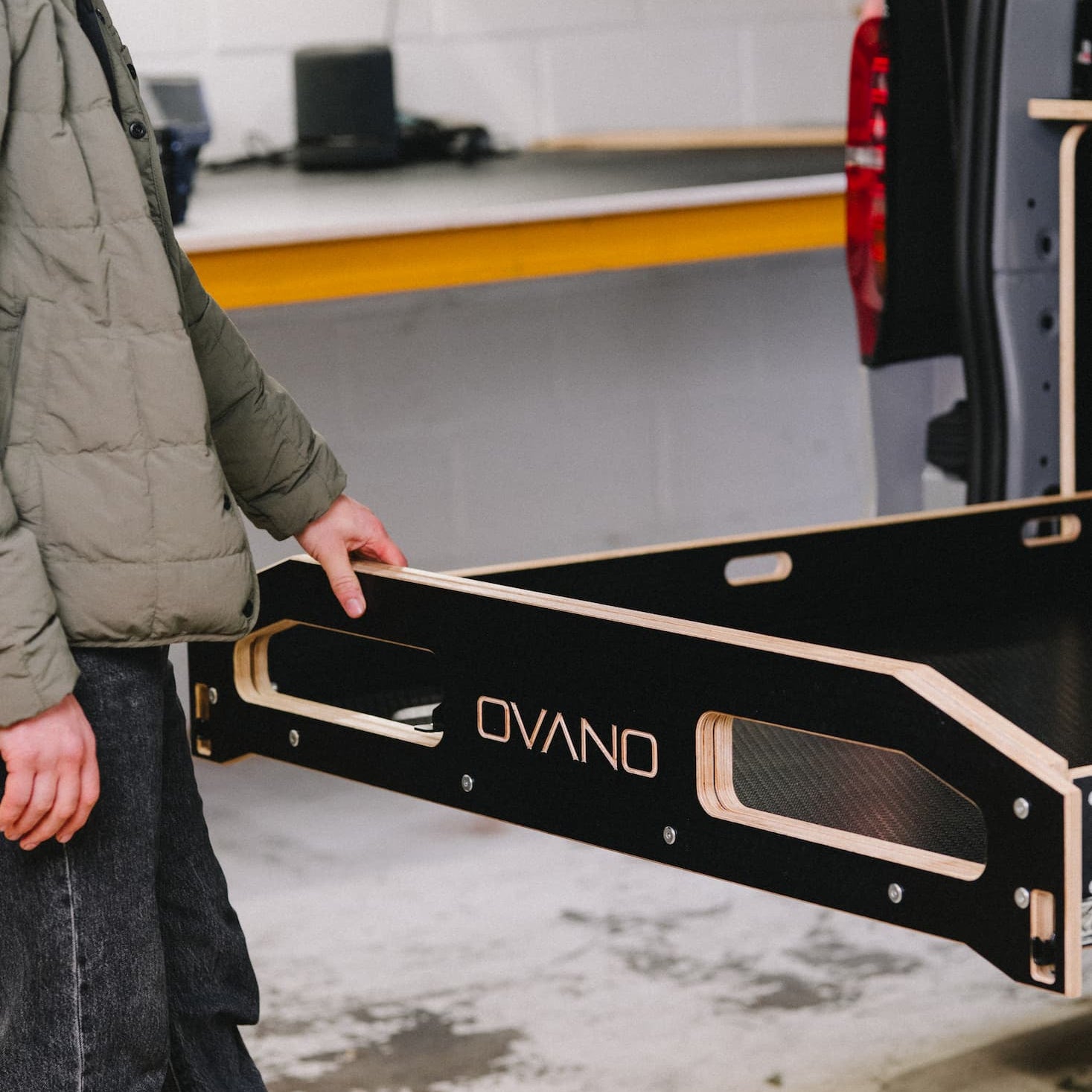

Person using Ovano drawer system in back of Transporter T7 kombi.

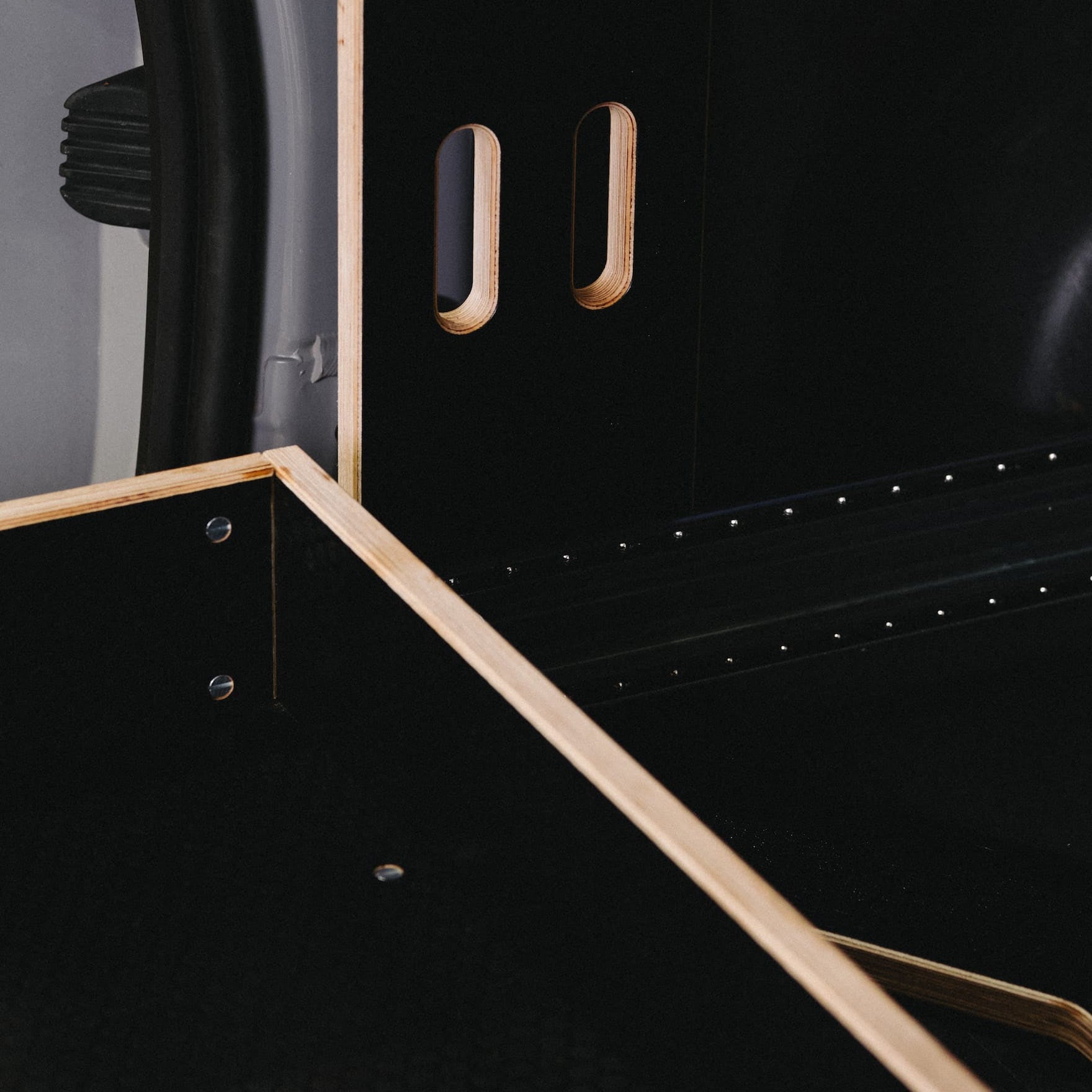

close-up of rear of ovano drawer installed in a van showing exposed ball bearing runners.

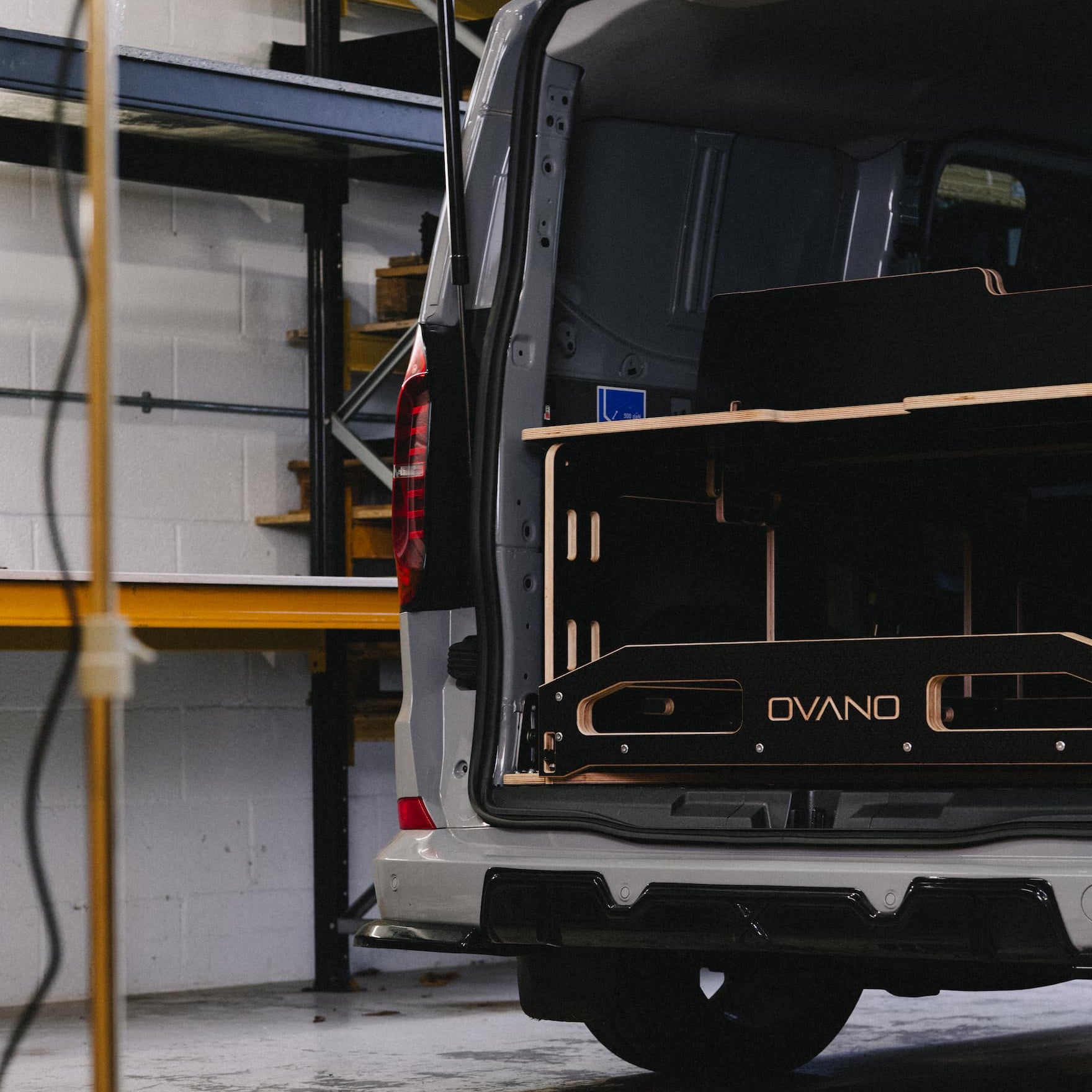

Ovano Switch fitted in rear of Transit Custom panel van. Shot from rear of van.

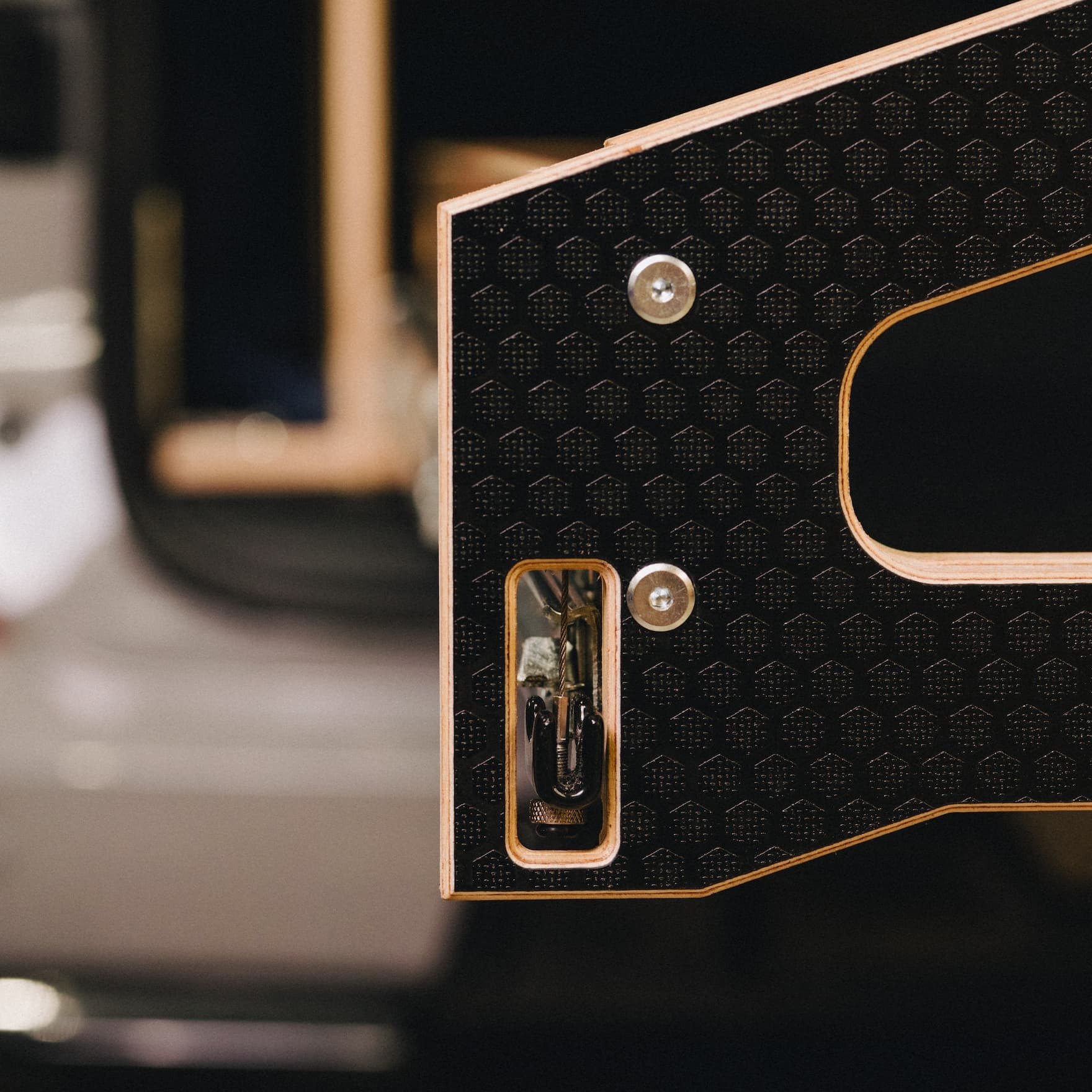

up-close of ovano one-touch latch system fitted in Transit Custom

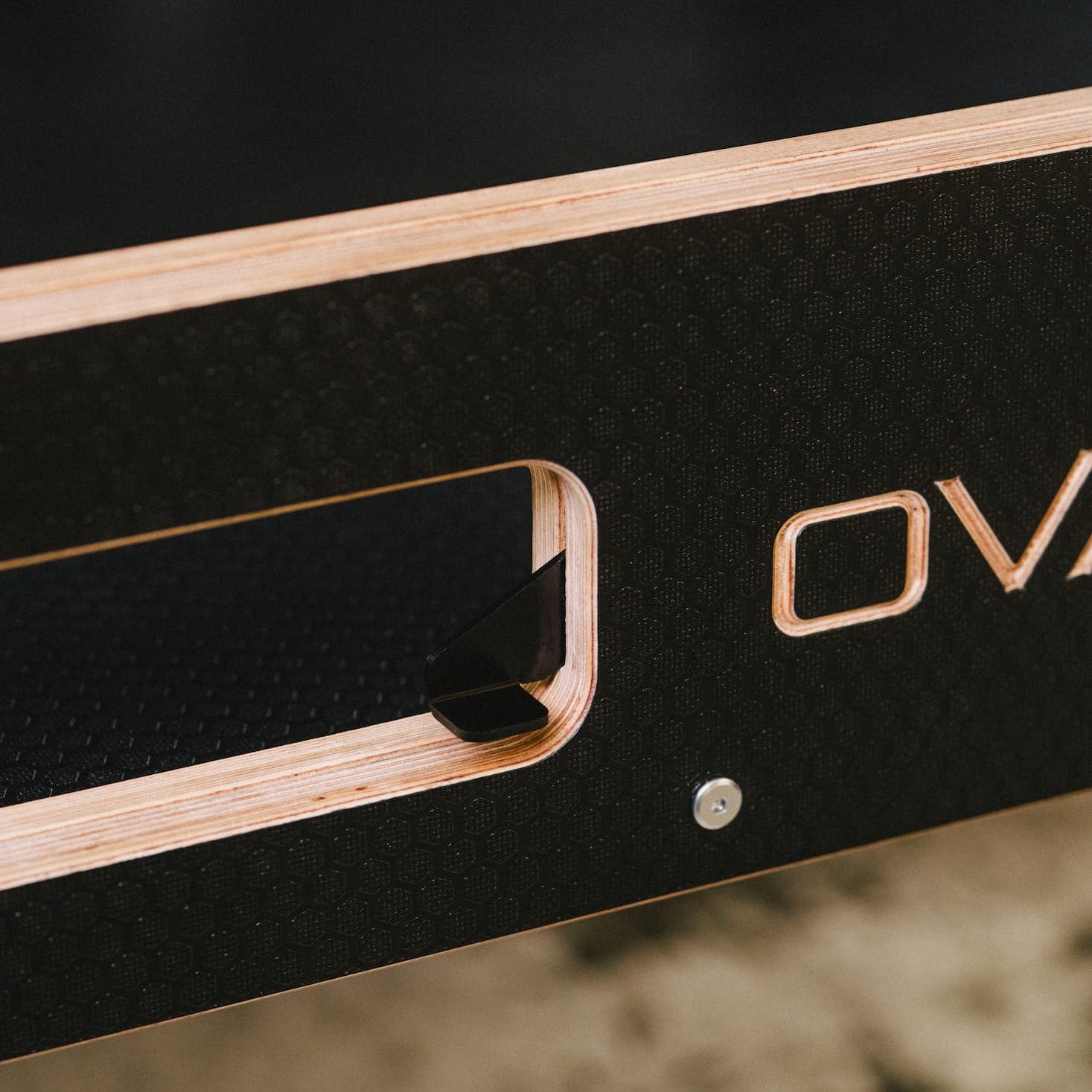

close-up of ovano drawer front, in particular the black onetouch handle
Stainless steel brackets and hardware in an ovano drawer system
Ovano Switch in new grey T7 kombi with twin sliding doors.
close-up of one touch mechanism on a black Ovano drawer front
Ovano switch fitted in Transit Custom. Close-up of rear flap detail.
Person using Ovano drawer system in back of Transporter T7 kombi.
close-up of rear of ovano drawer installed in a van showing exposed ball bearing runners.
Ovano Switch fitted in rear of Transit Custom panel van. Shot from rear of van.
up-close of ovano one-touch latch system fitted in Transit Custom
close-up of ovano drawer front, in particular the black onetouch handle
Stainless steel brackets and hardware in an ovano drawer system

Switch - T7 | Transit Custom 2023+

£1,840.00 GBP
Wheel base
Type
Installation | Delivery
Free Shipping
Free Installation
2 Year Warranty

Flexible.  Robust.  Removable.

Now supplied as standard with our OneTouch drawer system, enabling smooth one-handed drawer operation when loading or unloading.

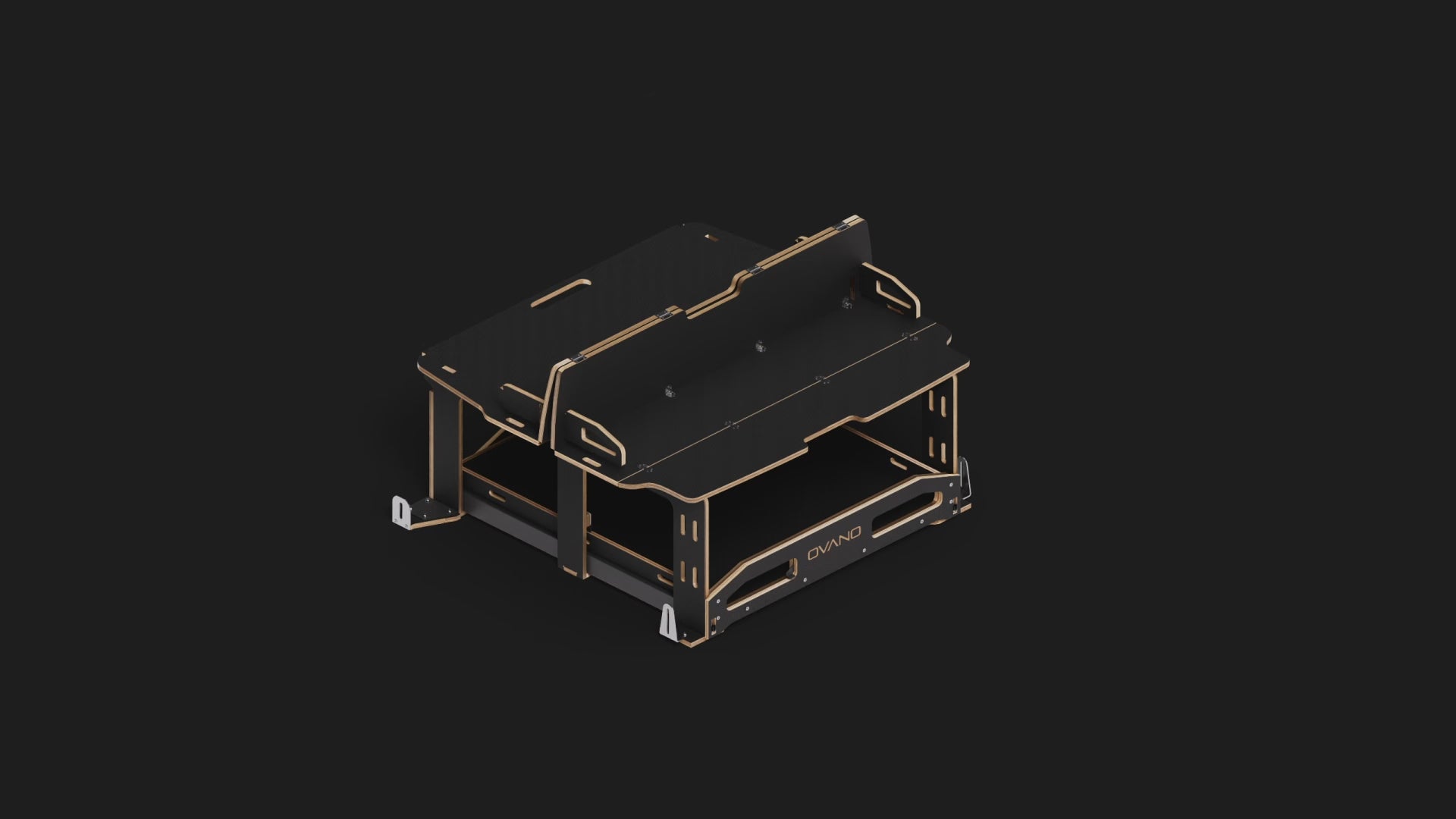

The Ovano Switch for VW Transporter T7 and Ford Transit Custom is a modular bed and storage system designed to adapt instantly between work, travel, and everyday use — without committing to a permanent conversion.

Built in the UK from black phenolic birch plywood, stainless steel hardware, and heavy-duty components, the Switch is engineered for real-world abuse and long-term reliability. From secure tool storage during the week to a full-width sleeping platform at the weekend, it delivers true flexibility in a single unit.

Backed by a 2-year Ovano warranty, the Switch is built to work hard, last longer, and move with you.

Compatibility

The Ovano Switch is engineered for maximum compatibility and fits the vehicle configurations listed below.


Compatible Vehicles

  • VW Transporter T7 – Panel Van or Kombi (works with or without rear seats)
  • Ford Transit Custom 2023 onwards – Panel Van and Crew Cab
    Note: Rear bulkhead must be removed on Crew Cab models

    Door Configurations
  • Tailgate
  • Barn doors

Still unsure? Don’t guess. Drop us a message or send a photo of your interior setup and our team will confirm fitment for you.
Installation

Expert installation at our Clevedon HQ (near Bristol)

Installation is carried out by our experienced team ensuring a secure, rattle-free fit.

  • Fast: 1-hour fitment
  • Safe: Installed by Ovano technicians
  • Easy booking: Select “Installation” at checkout and choose your date
  • Free: We don’t charge for installation
Details & Dimensions

Construction & Materials

  • Primary material: 18mm black hexa-grip phenolic-coated A-grade birch plywood
  • All cut edges chamfered and sealed (double-coated in high-traffic areas)
  • Surface-mounted flush hinges: A4 stainless steel (marine grade)
  • Drawer runners: 180kg heavy-duty locking runners, galvanised steel
  • Bulkhead restraint: Dyneema-cored braided line (stronger than steel)
  • Threaded inserts used throughout — no wood screws

Dimensions

SWB (Short Wheelbase)

  • Drawer: 1200mm (L) × 1085mm (W) × 495mm (H)
  • Bed length: 1900mm
  • Bed width: 1475mm
  • Platform height: 580mm

LWB (Long Wheelbase)

  • Drawer: 1500mm (L) × 1085mm (W) × 495mm (H)
  • Bed length: 2300mm
  • Bed width: 1475mm
  • Platform height: 580mm

Warranty

  • Covered by a 2-year Ovano warranty
Care & Maintenance

Cleaning surfaces

Wipe usable surfaces and metal components with Green Oil or a similar light lubricating spray. Avoid harsh or abrasive cleaning chemicals.

Drawer runners

Use compressed air to remove debris from around the ball bearings, then reapply Green Oil liberally to maintain smooth operation.

See our care and maintenance video for full instructions.
Shipping & Returns
  • Fully assembled units delivered via pallet delivery
  • Delivery available across mainland UK
  • Additional charges apply for the Scottish Highlands and Islands, as well as Northern Ireland
  • Delivery date arranged after order confirmation

Please see our Shipping Policy for further details

Lead times

  • Manufacturing lead time is typically 7 working days, unless otherwise stated

    Returns
  • Returns accepted within 14 days of delivery
  • Items must be unused and in original condition
  • Return shipping costs are the responsibility of the customer unless the item is faulty or incorrect

See Returns Policy for full details

Contact us with any questions you have.
