VW Transporter T5 & T6 Kombi Bed & Narrow Drawer System — Switch Narrow

£1,820.00 GBP

1 review
Wheelbase
Type
Installation | Delivery
Request A Call
Current lead time: 21 days
Free Shipping
Free Installation
2 Year Warranty

Boards in. Floor space kept.

Switch Narrow is the same system in a narrower footprint, so long items still fit alongside: light stands, tripods, step ladders, surfboards. It fits a T5 or T6 without cutting or drilling, and comes out in twenty minutes.

18mm black phenolic birch ply, A4 stainless hardware, runners rated to 180kg. Secure storage during the week, a full-length bed or load platform at the weekend.

Supplied as standard with our OneTouch drawer system, so the drawer opens with one hand when the other one is full.

It comes out when you sell the van. No holes to fill, no bodywork to make good. The system moves to the next van, or comes off the price of this one.

Made to order in our workshop in Clevedon, and backed by a 2-year Ovano warranty.

Goes with it

If you do not need the floor space alongside, the Switch XL gives you a wider bed. The rest of the range is in Transporter T5 & T6.

Compatibility

The Ovano Switch Narrow is engineered for maximum compatibility across the VW Transporter range.


Compatible Vehicles

  • VW Transporter T5, T5.1, T6, and T6.1
  • Fits SWB and LWB models

Door Configurations

  • Tailgate
  • Barn doors
  • Twin sliders (including electric doors)

Seating Configurations

  • Compatible with all standard Kombi seats
  • Works with seats fully removed
  • Note: Shuttle models require the rearmost row of seats to be removed

Still unsure? Don’t guess. Drop us a message or send a photo of your interior setup and our team will confirm fitment.
Installation

Expert installation at our Clevedon HQ (near Bristol)

Installation is carried out by our experienced team, ensuring a secure, rattle-free fit.

  • Fast: 1-hour fitment
  • Safe: Installed by Ovano technicians
  • Easy booking: Select “Installation” at checkout and choose your date
  • Free: We don’t charge for installation
  • No drilling or modifying required
Details & Dimensions

Construction & Materials

  • Primary material: Black phenolic-coated birch plywood
  • Stainless steel hinges
  • Heavy-duty drawer runners rated to 180kg
  • Dyneema-cored braided restraint line
  • Threaded inserts used throughout — no wood screws
  • All cut edges chamfered, sealed, and smoothed. Extra protection applied in high-traffic areas

Layouts & Features

  • Full-height bulkhead
  • Half bulkhead
  • Full-length bed / load platform
  • 180kg locking drawer
  • Integrated cubby hole running the full length of the unit
    Ideal for surfboards, ladders, fishing rods, light stands, or tripods
  • Internal Drawer Dimensions
  • SWB: 1200mm (L) × 760mm (W) × 495mm (H)
  • LWB: 1500mm (L) × 760mm (W) × 495mm (H)

Bed & Platform Dimensions

  • SWB bed: 1900mm (L) × 1475mm (W)
  • LWB bed: 2300mm (L) × 1475mm (W)
  • Height from floor: 580mm
  • Bed to ceiling clearance: 790mm (standard, unmodified van)

Warranty

  • Covered by a 2-year Ovano warranty
Care & Maintenance

Cleaning surfaces

Wipe usable surfaces and metal components with Green Oil or a similar light lubricating spray. Avoid harsh or abrasive cleaning chemicals.

Drawer runners

Use compressed air to remove debris from around the ball bearings, then reapply Green Oil liberally to maintain smooth operation.

See our care and maintenance video for full instructions.
Shipping & Returns

Shipping

  • Fully assembled and delivered on a pallet
  • Mainland UK delivery, with additional charges for the Scottish Highlands, the Islands and Northern Ireland
  • We call you within one working day of your order to arrange a delivery date

Full details are in our delivery policy.

Returns

  • Returns accepted within 14 days of delivery
  • Items must be unused and in original condition
  • Return shipping is the customer's responsibility unless the item is faulty or incorrect

Full details are in our returns policy.

Questions about fitment or delivery? get in touch.
View details
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jon P.

So far so good!

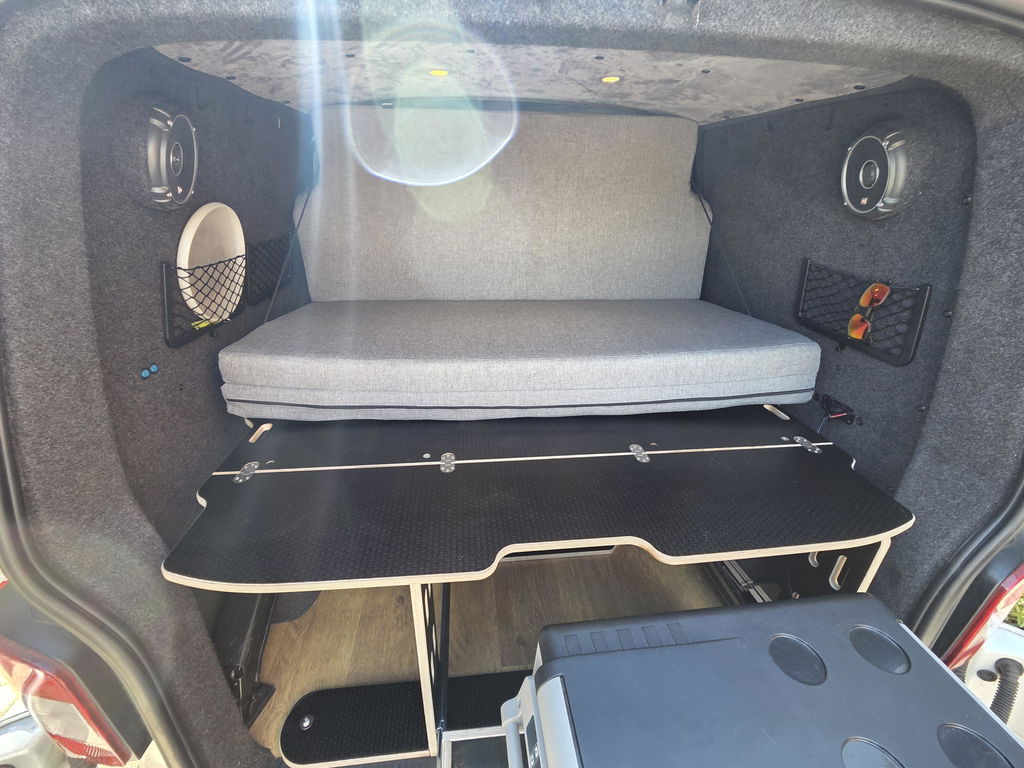

Expensive but if you buy cheap you buy twice! Build quality is superb, I expected some rattling but it's silent! All the fixtures are high quality and fitting is easy. I'm using it in conjunction with the forty winks mattress, also great quality although a little hard! The draw has enough space for a total cool fridge and a battery power station with room to spare. I will be exploring the option of adding a second drawer as a kitchen station.
